Failover VPN between Sonicwall and Azure Networks

Synopsis: Work in progress - steps for creating a failover VPN configuration between on-prem SonicWall and Azure INF..

Published June 23rd, 2026
Last Modified: July 21st, 2026

Intro: Work in progress, still figuring this out exactly, but will need to recreate for about a dozen networks.







Quick Run Down

1.) Confirmations

2.) SonicWall Setup

3.) Azure Setup

4.) SonicWall CLI

5.) Troubleshooting

Confirmations

  • Access to SonicWall admin available over WAN connection.
  • Sonic Wall Licensing might not include advanced networking, confirm the option to enable BGP is available.
  • Azure Gateway License SKU might not include advanced networking, confirm the option to enable Active-Active is available.
  • Route-Based VPN Tunnels ( NOT Policy-Based )
  • Network Design for BGP has been completed - Other Guide

SonicWall Setup

    SonicWall Setup

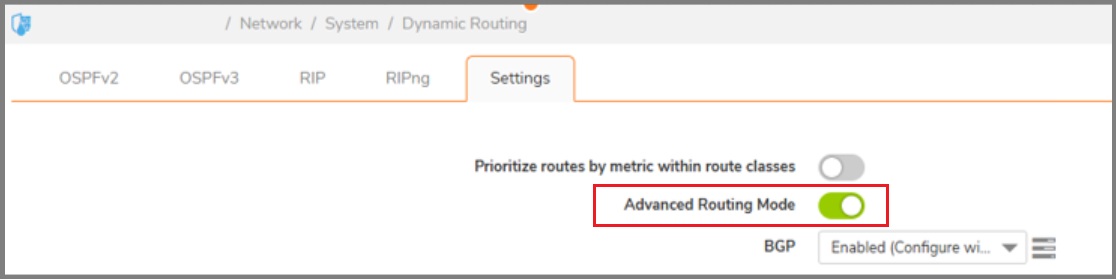

    • Network > System > Dynamic Routing > Enable Advanced Routing
    • Network > System > Dynamic Routing > Enable BGP (Configure with CLI)


    • Enable SSH on the WAN interface. Enabled on both for testing.
    • Optional: Create a temp local admin for using with Putty for allowing connectivity through ssh and web interface simultaneously.
      • Device > Users > Local Users and Groups > Add User

    VPN Policies

      VPN Policies must be created first in order to be referenced by the Virtual Interfaces in the next step. There should be two once completed.

    • Policy Type: Tunnel Interface
    • IKE Using Preshared Secret
    • Name: Office-Azure-Primary OR Office-Azure-Secondary
    • IPsec Primary Gateway Name or Adress: Azure VNETGW Primary IP OR Azure VNETGW Secondary IP

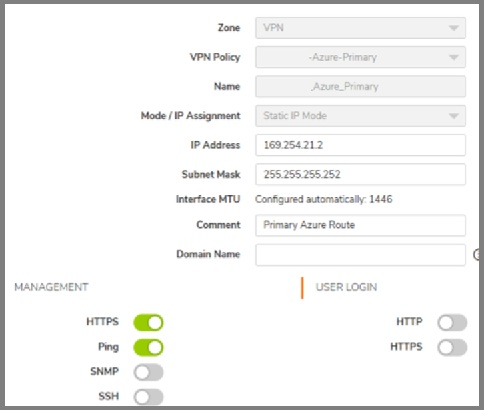

    Virtual Interfaces

      Create a VPN Tunnel Interface for each circuit. There should be two once completed. These items are the local BGP items that will be referenced by Azure.
      The Subnet Mask should be '255.255.255.252' if using the network design plan from other guide.



    Custom Routing

    • Policy > Rules and Polices > Routing Rules
      • Custom routes must be created to allow outbound priority on one of the VPN tunnels. The routing from the Azure side is configured later during the BGP cli configuration.

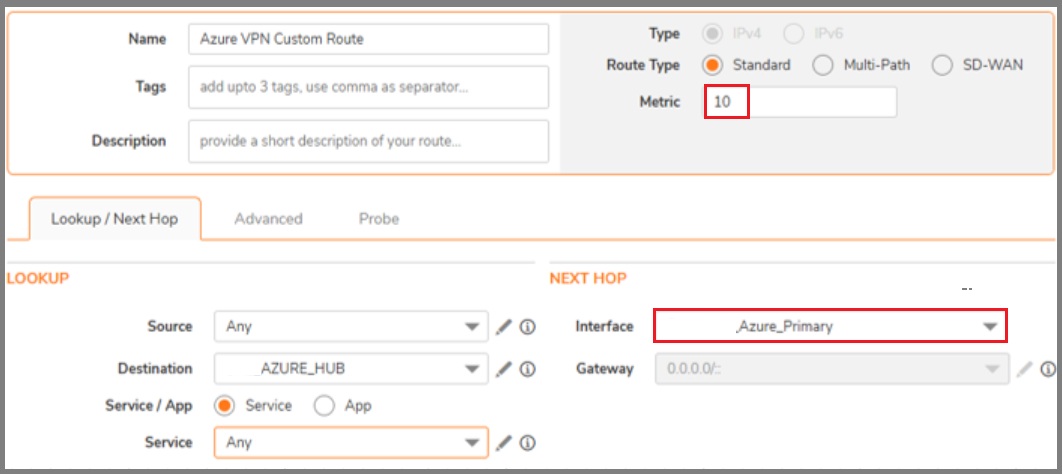

      Note in the example below, the lower metric is applied to the primary route.
      Once again; There should be two once completed.



Azure Setup

    The steps below are notes on how items should look for a single deployment, not so much about 'how' to implement these options.

    Virtual Network Gateway

    • Active-Active: Enabled
    • Autonomous system number (ASN) : 65515 (Default ASN for Azure VNET GWs)
    • Custom Azure APIPA BGP IP ADDRESS : 169.254.21.1
    • Second Custom Azure APIPA BGP IP ADDRESS : 169.254.21.5
    • And other IPs as planned from your BGP network design doc ...



    Local Network Gateway A

    • Configure BGP : YES
    • ASN : 65010
    • BGP Peer IP Address : 169.254.21.2
    • Address Space : 169.254.21.2/32

    Local Network Gateway B

    • Configure BGP : YES
    • ASN : 65010
    • BGP Peer IP Address : 169.254.21.6
    • Address Space : 169.254.21.6/32

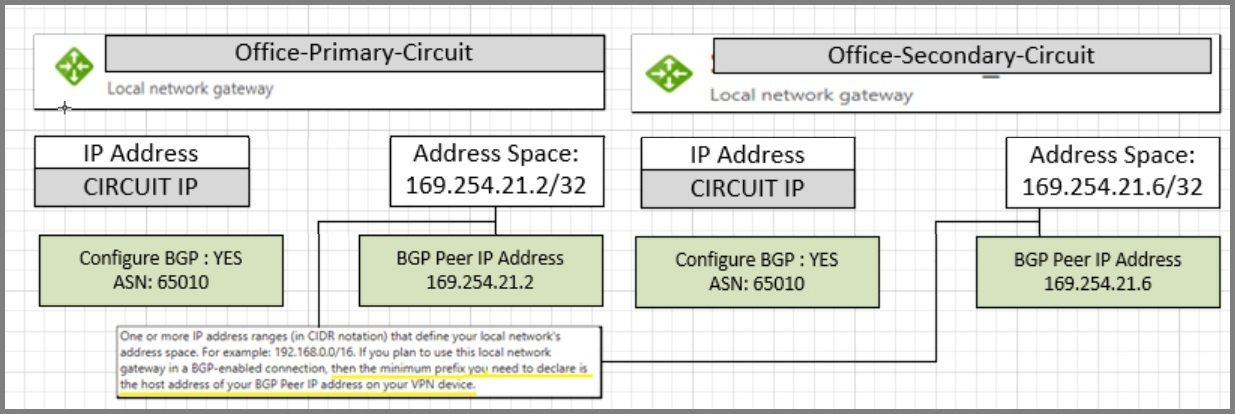

    Design layout for Initial BGP Failover network.







    Connection A

    • BGP: Enabled

    Connection B

    • BGP: Enabled

SonicWall Setup CLI - BGP Configuration

    Connect Via Putty and make the following things:

  • Custom BGP
    • config
    routing
    bgp
    configure terminal
    ip prefix-list ALL seq 10 permit 0.0.0.0/0 le 32
    router bgp (YOUR_ASN)
    network (SUBNET)
    exit
    exit
    write




  • Custom Route Map (This is required for Azure to 'learn' the primary/secondary route prefence
    • config
    routing
    bgp
    configure terminal
    route-map (ROUTE-MAP-NAME) permit 10
    match ip address prefix-list ALL
    set as-path prepend (YOUR_ASN)(YOUR_ASN)(YOUR_ASN)
    exit
    exit
    write

  • Create 1st BGP Neighbor
    • config
    routing
    bgp
    configure terminal
    router bgp (YOUR_ASN)
    neighbor (AZURE_PEER_IP_1) remote-as (AZURE_ASN)
    neighbor (AZURE_PEER_IP_1) ebgp-multihop 2

  • Create 2nd BGP Neighbor
    • neighbor (AZURE_PEER_IP_2) remote-as (AZURE_ASN)
    neighbor (AZURE_PEER_IP_2) ebgp-multihop 2
    neighbor (AZURE_PEER_IP_2) route-map (ROUTE-MAP-NAME) out

  • Save and Exit, as needed to return to top layer
    • exit
    exit
    writer

  • Export Summary to review with example below
    • config
    routing
    bgp
    show running-config

Troubleshooting Tips

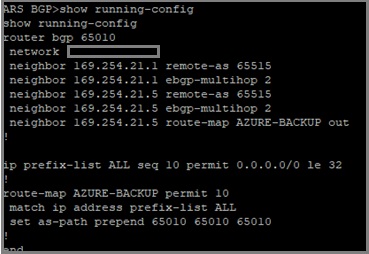

  • BGP Running Config Example:


  • SHOW IP BGP SUMMARY


  • Dynamic Routes not populating in SonicWall?
      • Needed to add custom BGP IPs to the connections used by the additional offices.
  • VPN Policy not turning green for any apparent reason. Maybe related to selecting the wrong tunnel interface during creation
    • neighbor [neighbor_ip] update-source [tunnel_interface_name] - Might do something. Not sure why this gets stuck.
